CNC Bridge Saw Workflow for Kitchen Countertop Production
Complete automated manufacturing solution for precision stone fabrication. Increase productivity by 60% with advanced CNC technology integration.
Revolutionizing Stone Fabrication Industry
Kitchen countertops represent one of the most profitable segments in stone fabrication. With increasing market demand for precision engineering and customization capabilities, leading manufacturers are adopting integrated CNC bridge saw systems to optimize their production lines.
This comprehensive technical guide details the complete workflow implementation, from raw material processing to finished product delivery, demonstrating how modern automation technology drives measurable operational improvements.
- Integrated cutting, shaping & drilling automation
- Sub-millimeter precision tolerance control
- Reduced material waste through intelligent nesting
- Scalable production capacity expansion
Why Industrial Facilities Choose CNC Bridge Saw Systems
Traditional manual cutting methods require multiple machine setups and extensive operator intervention, resulting in inconsistent quality metrics and elevated operational overhead costs.
Modern CNC bridge saw technology consolidates the entire fabrication process into a unified automated workflow, delivering measurable improvements across all key performance indicators.
- Precision Engineering: Consistent ±0.1mm accuracy across all operations
- Labor Optimization: Reduce workforce requirements by up to 40%
- Throughput Acceleration: 3x faster cycle times vs conventional methods
- Complex Geometry: Execute intricate multi-axis profiles automatically
- Rapid Capital Recovery: Typical payback period within 12-24 months
Four-Phase Manufacturing Workflow
Streamlined operation sequence optimized for maximum efficiency and quality consistency
Material Preparation
Slab selection, positioning, and vacuum securing system activation for stable processing conditions.
Digital Design
CAD-based layout optimization including sink cutouts, edge profiles, and automatic nesting algorithms.
Automated Machining
Precision cutting, edge shaping, drilling, and surface finishing executed by CNC program control.
Quality Assurance
Dimensional verification, surface inspection, and packaging preparation for shipment delivery.
Complete 8-Step Production Sequence
Detailed breakdown of each manufacturing stage with operational parameters and quality checkpoints

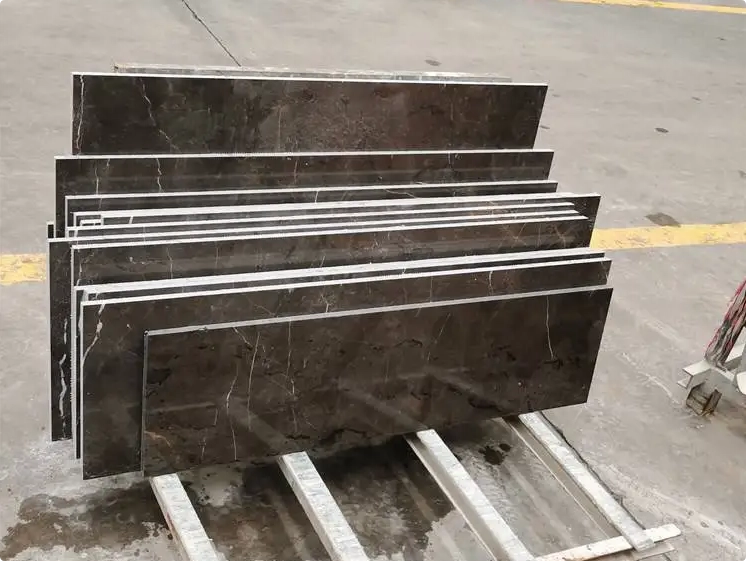

Material Preparation & Positioning
Select granite, marble, quartz, or sintered stone slab from inventory. Load onto working table and activate vacuum suction cup system (typically 6-8 cups) to secure material firmly throughout the entire machining cycle.
CAD Design & Layout Optimization
Import or create countertop design specifications using professional CAD software. Define complete geometry including outer dimensions, sink cutout positions and sizes, faucet hole locations, and edge profile type.
Automatic Origin Setting & Alignment
System performs automatic workpiece detection and coordinate alignment. Optional camera vision system captures slab position data for precise origin calibration. Laser alignment system verifies material edges and establishes accurate reference points.
Rough Cutting & Slab Separation
Execute primary cutting operations to separate individual countertop pieces from the source slab. Perform straight cuts, angle cuts, and slab division operations with high-speed cutting ensuring clean edge quality.

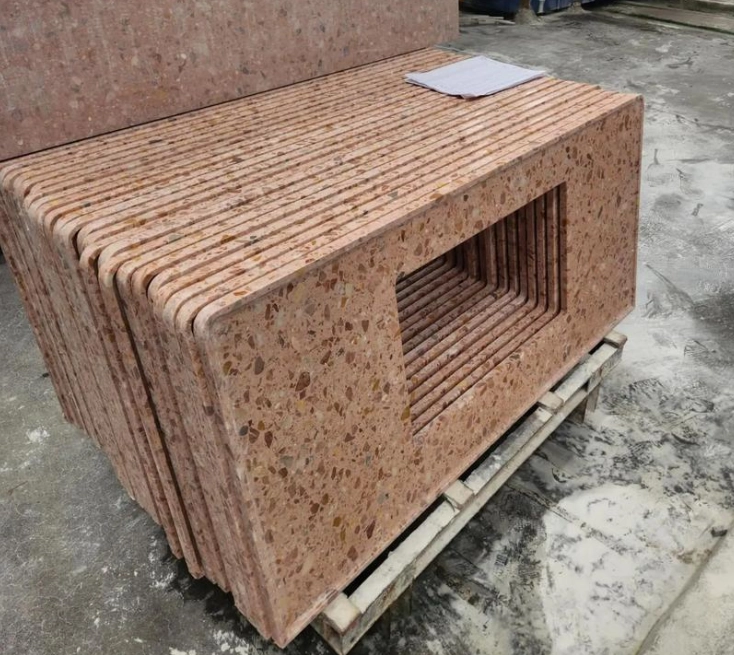

Sink Cavity Processing
Machine sink opening according to design specifications. Support multiple sink configurations: undermount, top mount, or custom-shaped openings. Advanced 4+1 axis and 5 axis machines enable complex curve cutting.

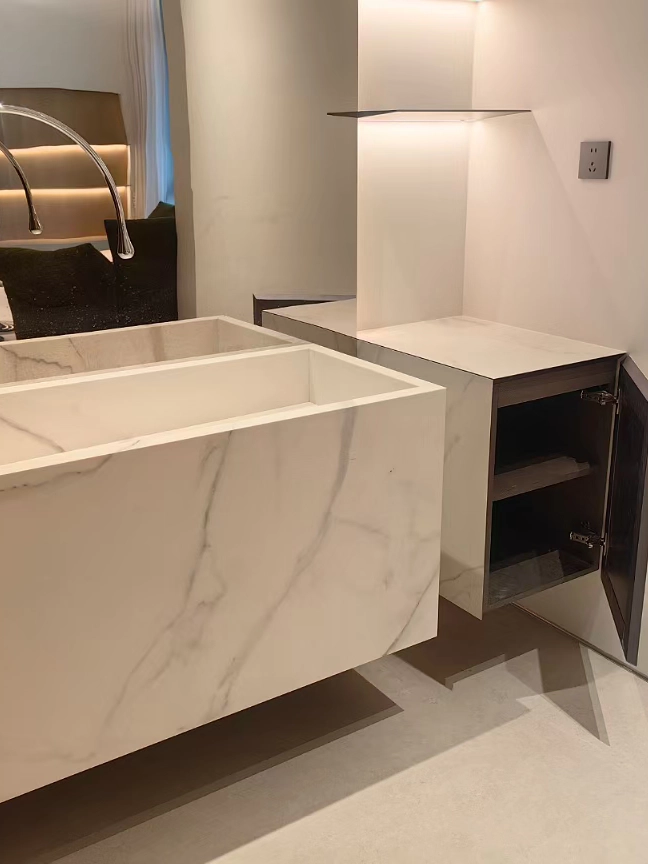

Edge Profiling & Shaping Operations
Apply specified edge treatment to all exposed perimeter surfaces. Standard profiles include straight eased edge, beveled edge, half bullnose, full bullnose, and ogee decorative shapes.
Faucet Hole Drilling & Hardware Prep
Automatically drill faucet mounting holes at programmed coordinates with high positional accuracy (±0.5mm typical). Support single-hole, 3-hole, 4-hole, and custom spread configurations.
Final Finishing & Quality Inspection
Complete edge polishing sequence to achieve specified surface finish quality. Perform visual inspection of all machined surfaces for defects or inconsistencies. Verify dimensional accuracy against design tolerances.
推荐的CNC桥式切割机型号
Purpose-built machinery configurations optimized for kitchen countertop production requirements
Recommended4+1轴数控桥式切割锯
Optimal balance of capability and investment for mid-scale production facilities requiring reliable daily output with standard countertop complexity levels.
Premium5轴数控桥式切割锯
Maximum automation capability for premium manufacturers demanding ultimate flexibility in complex geometric processing and high-mix production environments.
Midecnc Industrial Equipment Solutions
Delivering comprehensive capabilities including fully automatic cutting sequences, sub-millimeter precision tolerances, multi-function integrated processing modules, and engineered long-term reliability backed by professional service support networks worldwide.
Ready to Upgrade Your Production Line?
Join hundreds of successful stone fabrication facilities that have transformed their operations with Midecnc technology. Request a consultation to discover how our solutions can increase your capacity, improve quality consistency, and drive sustainable profitability growth.
推荐机型
对于室内装饰专业人士，Midecnc 提供兼具精度、高效与创意灵活性的 CNC 加工设备。无论是加工岩板、陶瓷板还是复合材料，我们的桥式切割机与雕刻系统都可兼顾艺术细节与结构加工的双重需求。
5轴数控桥式切割锯
专为高端室内与建筑应用设计，五轴桥式切割机可实现超高精度的斜切、曲线造型、水槽开孔，甚至浮雕雕刻——全部集成在一个智能加工流程中。适用于岩板、大理石、石英石和陶瓷板材，为设计师与加工厂带来卓越的效率与多功能性。
- 拍照与吸盘系统：先进的对位与石材固定系统，提升操作安全性与切割精度。
- 真正的五轴切割：具备全XYZ移动、主轴旋转与倾斜功能，支持高级3D造型、边缘加工及最大45°斜切。
- 可处理复杂形状：适用于切割三角形、椭圆形、菱形、圆形、台面、桌面等各种图形。
4+1轴数控桥式切割锯
适用于需要斜切、直线抛光和嵌槽加工的项目，是理想之选。可靠、高效、易操作，适用于日常室内切割任务。
- ±90°刀头旋转，0–90°倾斜角度
- 非常适合制作柜体开槽和灯带槽位
- 重型机架与简易控制：专为稳定性和直观操作而设计
AC 五轴数控水刀切割机（4020AC）
旗舰型号，适用于大板切割、边缘修型和倒角加工。非常适合用于陶瓷、岩板及装饰材料的室内应用。
- 五轴全插补切割，实现无缝拼接与艺术角度加工
- 自动排版与智能刀路优化，有效减少材料浪费
- 支持加工瓷砖、岩板、玻璃、密度板及复合材料
