How a Stone Factory Eliminated Edge Chipping on Sintered Stone
By replacing traditional saw cutting with CNC waterjet cutting, one stone fabrication factory dramatically reduced edge chipping, improved product quality, reduced material waste, and increased customer satisfaction.
Edge Chipping in Sintered Stone Processing
Sintered stone is widely used in modern architecture and interior design, but fabricators quickly discover one major challenge during machining: edge chipping. Unlike natural granite or marble, sintered stone combines extremely high density with relatively low fracture tolerance near exposed edges.
🔨 Micro Edge Fractures
Stress concentrations along the cutting path cause microscopic fractures that propagate toward the slab edge, resulting in visible edge defects
🌡️ Thermal Stress
Heat generated by continuous blade contact causes localized thermal expansion inside the dense ceramic structure, increasing the likelihood of edge damage
⚡ Vibration Damage
Even high-quality bridge saws experience slight spindle vibration, producing irregular cutting forces, uneven kerf quality, and edge breakout
💎 Tool Wear
As diamond segments wear, cutting efficiency decreases, and operators often compensate by increasing feed pressure, which further increases edge stress
✂️ Corner Chipping
Corners near sink cutouts and internal openings are particularly prone to breakout and material loss, affecting finished product quality
📉 Efficiency Decline
Extensive polishing rework, edge grinding, and corner repair significantly increase production costs and reduce overall efficiency

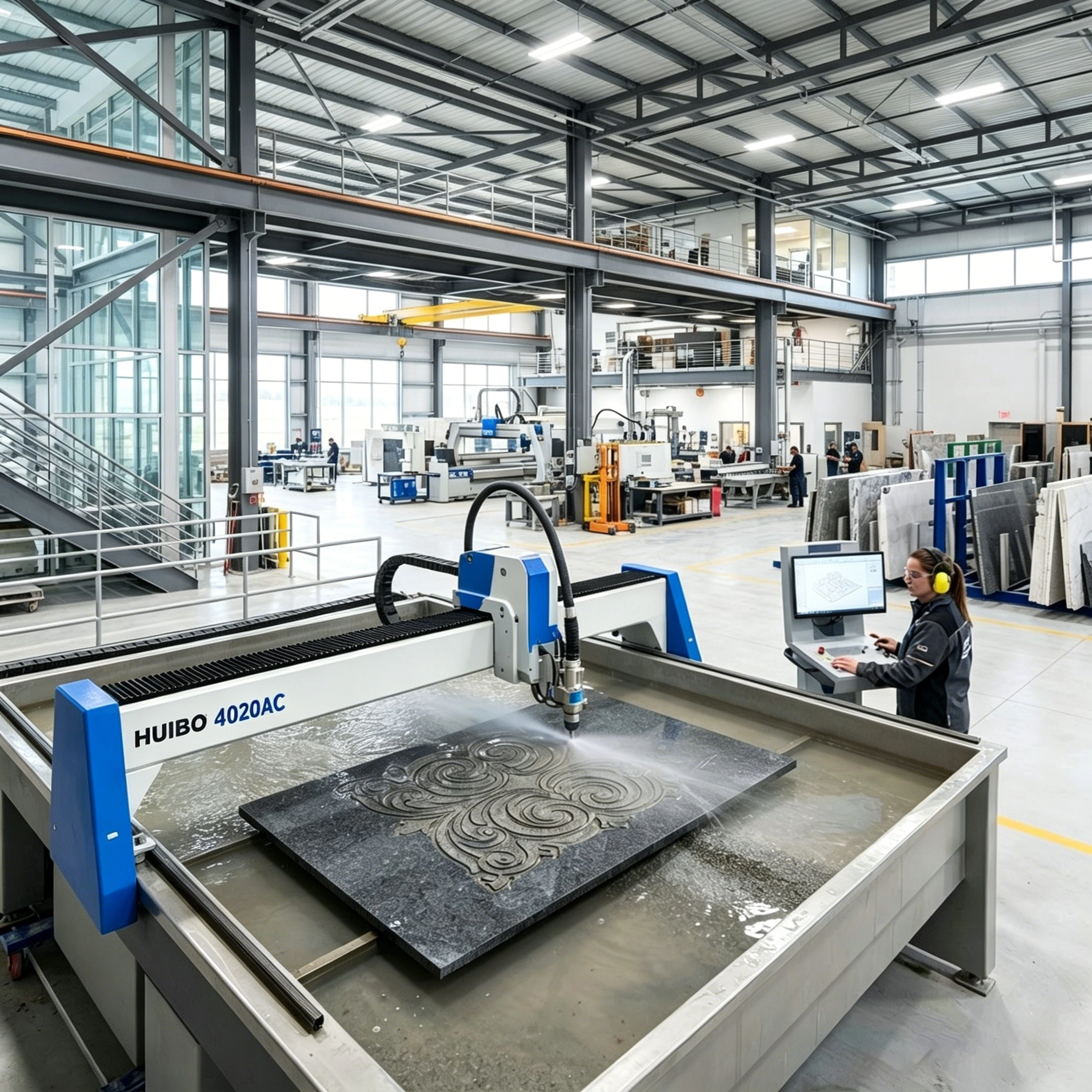

The Factory's Original Cutting Process
The fabrication workshop specialized in:
- Plans de travail de cuisine
- Large-format porcelain slabs
- Bathroom vanity tops
- Plans de travail d’îlot
- Panneaux de mobilier
Their production workflow relied primarily on a CNC bridge saw equipped with segmented diamond blades. Although the machine delivered excellent productivity on granite and marble, problems appeared immediately when processing ultra-compact sintered stone.
High-quality sintered stone offers exceptional hardness and durability, but is difficult to machine
Typical Production Issues
- Small chips along exposed edges
- Frequent polishing rework
- Corner breakout near sink openings
- Blade wear after cutting multiple slabs
- Increased scrap rates on expensive materials
Why CNC Waterjet Cutting Solved the Problem
Unlike mechanical sawing, abrasive waterjet cutting removes material through high-pressure water mixed with garnet abrasive. There is no rotating blade contacting the workpiece. This changes the cutting mechanism entirely.
Key Advantages
- Cold cutting process - No heat-affected zone, material stays structurally stable
- Minimal mechanical loading - Cutting stress remains extremely low
- Low vibration - Precise servo-controlled motion
- Narrow kerf width - Improves material utilization
- Superior edge quality - Minimizes secondary polishing
- Excellent dimensional accuracy - Stable cutting speed throughout complex toolpaths

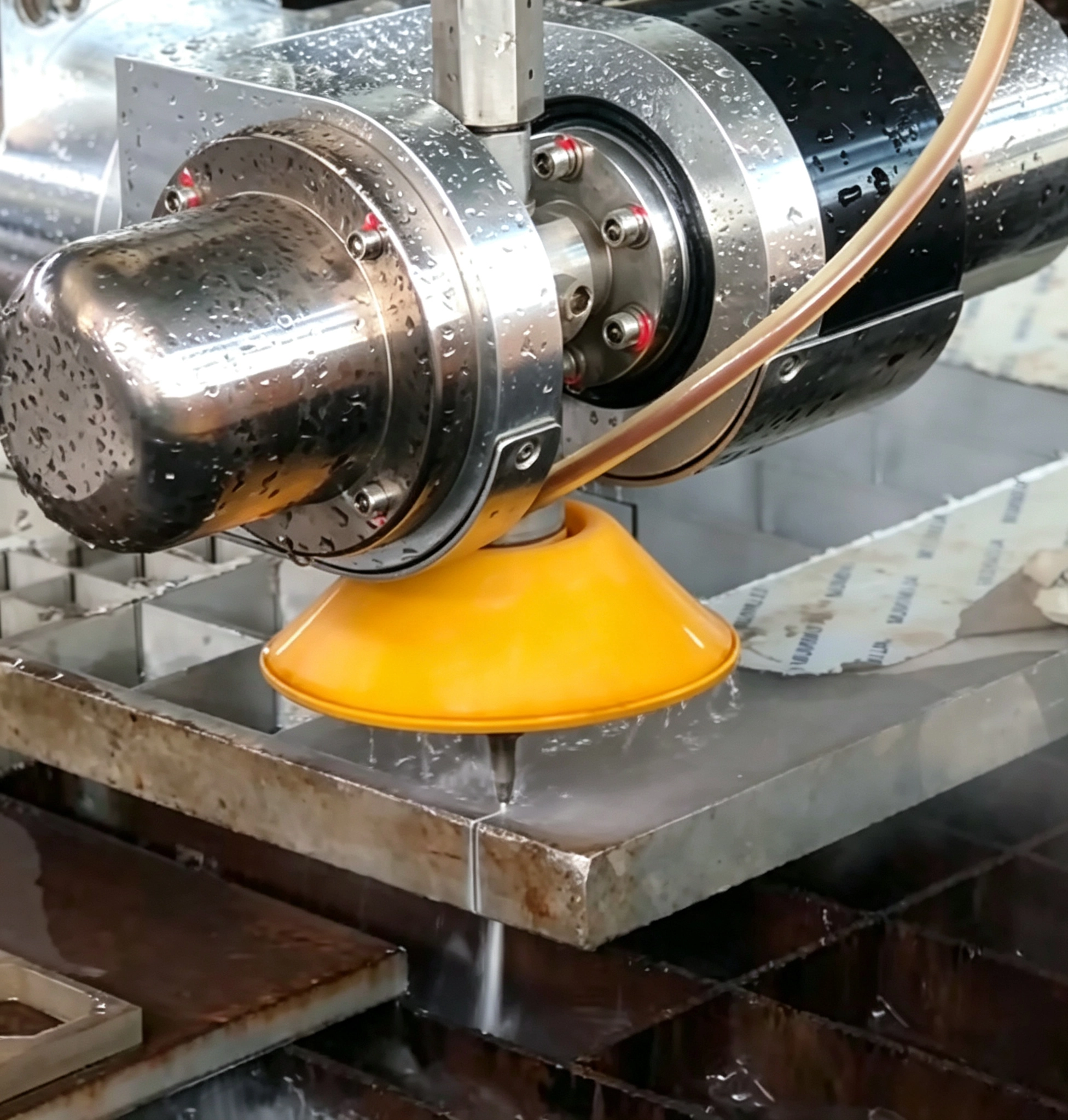

CNC waterjet machines complete complex cutting profiles precisely while maintaining superior edge quality
High-Pressure Waterjet Produces Cleaner Edges
Industrial CNC waterjet systems typically operate between 300–420 MPa. The ultra-high-pressure water stream accelerates garnet particles to extremely high velocity. These particles erode the material layer by layer instead of fracturing it with impact.
As a result:
- Material removal becomes continuous
- Cutting stress remains low
- Micro-cracks are minimized
- Edge breakout is significantly reduced
- The finished edge requires much less secondary polishing
CNC Motion Control Improved Overall Accuracy
The factory upgraded to a fully servo-controlled CNC waterjet platform, featuring:
- Precision ball screw transmission
- Linear guide rails
- Closed-loop servo motors
- CNC interpolation control
- Automatic height sensing
- Intelligent nesting software
Measurable Improvements and Benefits
| Indicateur | Original Process | With CNC Waterjet | Improvement |
|---|---|---|---|
| Edge Defect Rate | 12-15% | 1-2% | ↓ 85% |
| Rework Time | 2-3 hours/piece | 5-10 minutes/piece | ↓ 95% |
| Utilisation des matériaux | 88% | 94% | ↑ 6% |
| Production Throughput | 8-10 pieces/day | 18-22 pieces/day | ↑ 115% |
| Customer Complaint Rate | 8-10% | < 1% | ↓ 90% |
Other Key Benefits
- Reduced scrap - Improved edge quality means less rework and significantly fewer rejected products
- Shorter production time - Cut to final quality in one step, with no additional edge repair needed
- Higher customer satisfaction - Fewer complaints and returns
- Operator efficiency - Simpler workflow, reduced skill requirements and training time
- Scalability - Equipment can handle complex custom cuts and intricate artistic patterns
- Better material utilization - Tighter nesting layouts and reduced edge allowance
Common Questions About CNC Waterjet Cutting
When properly configured, CNC waterjet cutting can reduce edge chipping to an extremely low level because it introduces minimal mechanical force and generates no heat-affected zone. Machine condition, abrasive quality, and cutting parameters remain important factors.
For straight production cuts, a CNC bridge saw offers excellent speed. For intricate profiles, sink cutouts, tight radii, and premium edge quality, CNC waterjet cutting generally delivers superior results. Many advanced facilities integrate both machines for a hybrid workflow.
In many cases, the edge produced by a CNC waterjet is clean enough to minimize secondary finishing. Visible edges for high-end countertops may still receive light polishing depending on the desired finish.
CNC waterjet systems can cut granite, marble, quartz, porcelain, ceramic, glass, aluminum, stainless steel, carbon steel, titanium, copper, composites, rubber, plastics, and many other materials using the same platform. Its versatility makes it an ideal choice for processing a wide range of materials.
Modern CNC waterjet systems combined with precision ball screw transmission, linear guide rails, and closed-loop servo motors can maintain stable cutting speed and excellent dimensional accuracy throughout complex toolpaths. Accuracy depends on factors such as water pressure, abrasive flow rate, and material thickness, but is sufficient for nearly all commercial applications.
